Gravity Storage Lifts Energy Sector with Grid-Connected Breakthrough

In the quest for efficient and reliable energy storage solutions, researchers have turned to an unconventional yet promising technology: gravity energy storage. A recent study published in the journal “IEEE Access” titled “Grid-Connected Modeling and Dynamic Characteristics Analysis of Gravity Energy Storage System Based on Permanent Magnet Synchronous Generator-Motor” delves into the dynamic modeling and grid integration of this innovative system. Led by Yan Li from the Economic and Technical Research Institute in Nanjing, China, the research offers a comprehensive analysis that could pave the way for broader adoption of gravity energy storage in the energy sector.

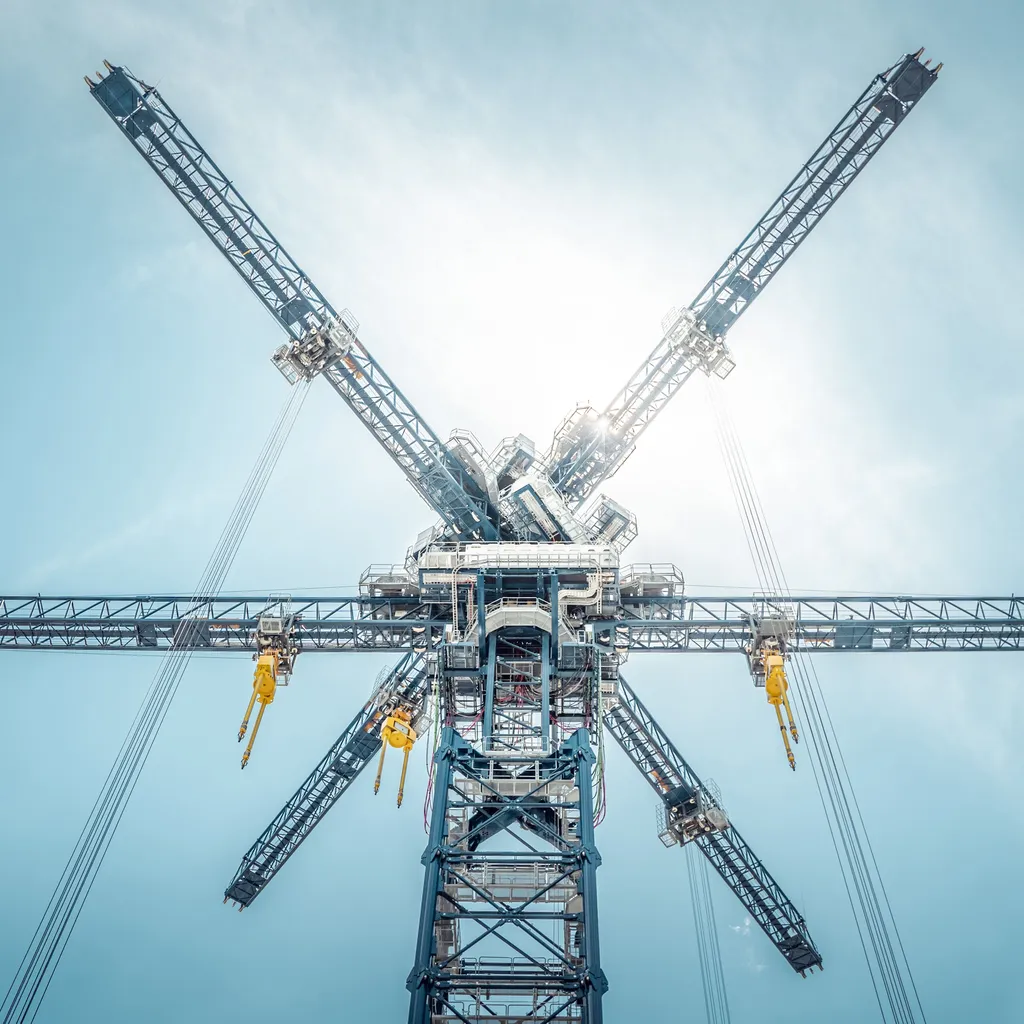

Gravity energy storage systems work by converting electrical energy into gravitational potential energy by lifting a weight and then converting it back into electrical energy when needed. This process involves a mechanical part, a permanent magnet synchronous motor (PMSM), and a back-to-back converter. The study proposes a modeling and simulation method for grid-connected systems that include these components. “The energy flow model and power model of the gravity energy storage system are constructed to quantify the energy loss and power dynamic characteristics under charging and discharging conditions,” explains Li.

The research establishes a mathematical model of the PMSM in the d-q coordinate system, which is crucial for understanding the motor’s behavior. The team designed a zero d-axis current control scheme for the machine-side converter and a vector control scheme based on grid voltage orientation for the grid-side converter. These control strategies ensure accurate regulation of motor torque and stable transmission of grid-connected power.

To validate their models, the researchers built a simulation of the gravity energy storage grid-connected system using MATLAB/SIMULINK. The simulation analyzed the dynamic performance under various working conditions, demonstrating that the output power of the gravity energy storage accurately matched the grid-connected power. The DC side voltage fluctuation was minimal, and the grid-connected voltage and current waveforms exhibited high sinusoidality with low harmonic content. Additionally, the motor speed and torque response were fast and stable.

The implications of this research are significant for the energy sector. Gravity energy storage systems offer a novel approach to energy storage that can complement existing technologies like batteries and pumped hydro storage. “The research results can provide technical reference for the engineering application of gravity energy storage grid-connected systems,” Li notes. This could lead to more efficient and reliable energy storage solutions, enhancing grid stability and supporting the integration of renewable energy sources.

As the energy sector continues to evolve, the need for innovative storage technologies becomes increasingly critical. Gravity energy storage, with its unique mechanism and potential for high efficiency, could play a pivotal role in the future energy landscape. The study published in “IEEE Access” offers a foundational understanding of the dynamic characteristics and grid integration of these systems, setting the stage for further advancements and commercial applications.
