In the quest for sustainable and efficient energy solutions, researchers have turned their attention to the Earth’s natural heat reservoir, exploring innovative ways to harness deep geothermal energy. A recent study published in the journal *Frontiers in Earth Science* introduces a novel approach that could revolutionize the geothermal energy sector. Led by Tao Xu from the Key Laboratory of Deep Petroleum Intelligent Exploration and Development at the Institute of Geology and Geophysics, Chinese Academy of Sciences, the research presents a promising method for overcoming the limitations of current deep geothermal energy exploitation technologies.

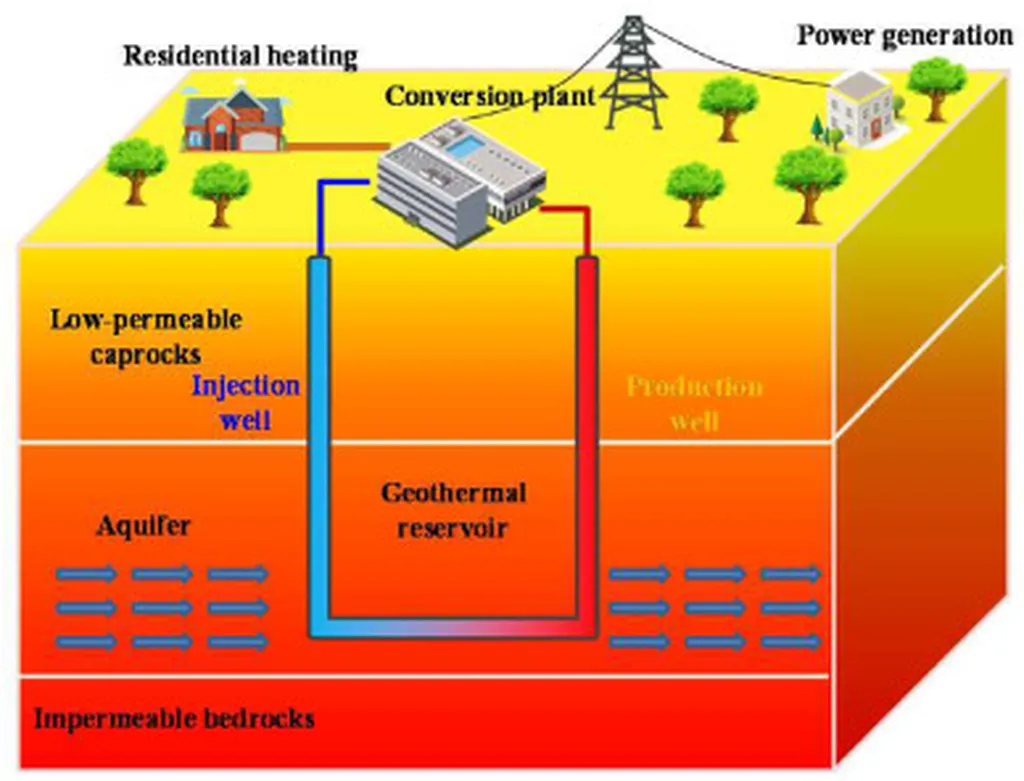

The study focuses on clustered U-shaped multi-branch wells (UMW), a technique designed to enhance heat exchange efficiency by circulating a working fluid through U-shaped wells. This method allows thermal energy to be transferred between the working fluid and the reservoir via the wellbore wall, eliminating the need for material exchange. “The UMW method offers a sustainable and efficient way to extract heat from deep geothermal reservoirs,” explains Tao Xu. “By optimizing operational parameters, we can ensure long-term thermal stability and maximize energy output.”
To validate the UMW method, the researchers conducted high-temperature and high-pressure thermal conductivity tests using hot dry rock samples from the Gonghe Basin. They developed a field-scale reservoir-wellbore coupling model to assess efficient heat extraction processes and the potential generating power of Organic Rankine Cycle (ORC) systems. The results were promising, with an average heat recovery power of approximately 4.32 MW over a 50-year operating cycle for a single set of six branch wells. The ORC power generation capacity was conservatively estimated at around 284.4 kW over the first 21.5 years and 144.6 kW over the 50-year period.
The study also highlights the importance of careful optimization of operational parameters. High injection rates, for instance, can lead to rapid thermal breakthrough and a sharp decline in early-stage heat extraction power. Sensitivity analysis of injection rates and the number of branch wells suggests that balancing short-term power and long-term thermal stability requires adjusting injection rates, the number of branch wells, well spacing, and branch well operational schematic.
The research provides a partial quantitative relationship between ORC power and operational parameters, offering valuable insights for optimizing geothermal energy extraction. “This study demonstrates the promising potential of the UMW method for sustainable deep geothermal energy development,” says Tao Xu. “Future research will focus on refining quantitative optimization strategies for injection rates and operational cycles to ensure efficient and long-term heat extraction while maintaining system stability.”
The implications of this research for the energy sector are significant. As the world seeks to transition to renewable energy sources, deep geothermal energy offers a reliable and sustainable solution. The UMW method could play a crucial role in unlocking the full potential of geothermal energy, providing a stable and efficient power source for years to come. With further refinement and optimization, this innovative approach could shape the future of deep geothermal energy exploitation, contributing to a more sustainable and energy-secure world.
